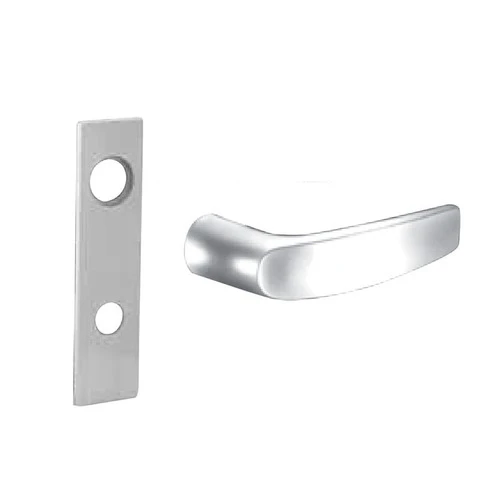

Fail Secure, 24V Electrified Mortise Lock, LW1 Escutcheon, B Lever, Satin Nickel
Featuring Ecoflex Technology, Sargent 8200 Electromechanical Mortise Locks are field changeable between fail safe and fail secure functions and operate off 12v through 24v power. They are designed to handle single opening, stand alone applications. They can also be readily integrated into sophisticated access control systems. They meet ANSI/BHMA A 156.13 Grade 1 requirements, are UL listed on fire doos and sitisfy industry standards for operating temperature, shock and fire hazard.
Designed and constructed with high quality components to provide maximum security.
The Sargent electrified 8270 series locks represent over a century of innovation and experience in manufacturing hardware and are the industry’s benchmark for mortise locks: Strong – Durable – Flexible – Innovative and Secure.
| Strike Number | 82-0110 |
|---|---|
| Door Thickness | 1-3/4" |
| Power | Hard Wired |
| Lever/Knob Design | B – Lever |
| Strike Height | 4-7/8" |
| Keyway | LA |
| Base Material | Brass or Bronze |
| Rose/Escutcheon Design | LW1 – Escutcheon |
| BAA Qualified | Yes |
| Origin | USA |
| Strike Type | ASA |
| Color Code | 619/US15 |
| Bolt Protection | 3/4" |
| Package Width | 5.625" |
| Keying | Keyed Different |
| Screws | Combination |
| Package Volume | 227.6367188 |
| Package Height | 4.375" |
| Package Qty | 1 |
| Application | Complete Lock |
| Cylinder Type | Conventional Cylinder |
| Operating Voltage | 12VDC/24VDC |
| Strike Width | 1-1/4" |
| Key(s) | Cut |
| Special Marks | Conventional cylinder, Fire rated 2 Hours {B} |
| Fire Rated | 2 Hours {B} |
| Grade | Grade 1 |
| Hand | Field Reversible |
| Function | 71-Electrical Fail Secure |
| Color | Satin Nickel Plated Clear Coated |
| Amp Draw | 500mA Peak, 15mA Holding |
| Package Length | 9.25" |
