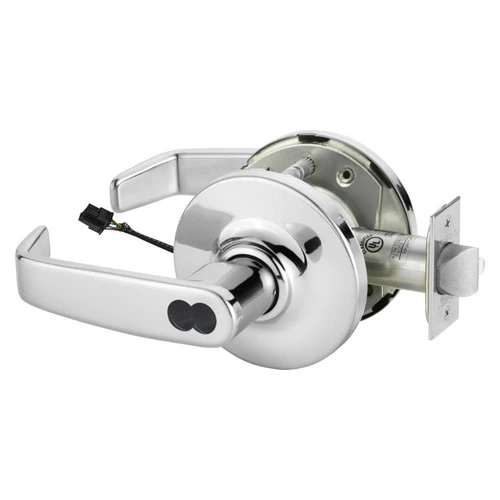

Electrified Cylindrical Lock, Fail Safe, 24V, GL Design, SFIC Prep, Less Core, RX Switch, Bright Chrome
The Sargent 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by five times the ANSI 156.2 Series 4000 Grade 1 standards. At over 4 million cycles, the 10 Line beats the competitor by 30%. As for abusive force, this lock endures more than two times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.
The 10 Line is the standard for institutional applications.
A heavy duty electrified cylindrical key-in-lever handle lockset exceeds by nine times the Grade 1 standards. As for abusive force, this lock endures more than 1.5 times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.
| Strike Number | 808 |
|---|---|
| Strike Type | ASA |
| Door Thickness | 1-3/4" to 2" |
| Case Height | 9" |
| Package Width | 7.125" |
| Bolt Protection | 1/2" |
| Case Volume | 2801.25 |
| Color Code | 625/US26 |
| Origin | USA |
| Package Height | 4.25" |
| BAA Qualified | Yes |
| Switch Type | RX |
| Rose/Escutcheon Design | G – Rose |
| Base Material | Brass or Bronze |
| Strike Height | 4-7/8" |
| Lever/Knob Design | L – Lever |
| Power | Hard Wired |
| Screws | Combination |
| Package Qty | 1 |
| Package Volume | 249.8203125 |
| Hand | Non Handed |
| Latch Number | 10-3192 |
| Amp Draw | 250mA |
| Color | Bright Chrome |
| Case Width | 15" |
| Function | 70-Electromechanical Fail Safe |
| Latch Type | Dead Latch (Guarded) |
| Grade | Grade 1 |
| Case Length | 20.75" |
| Fire Rated | 3 Hours {A} |
| Special Marks | Small format interchangeable core, Fire rated 3 Hours {A} |
| Strike Width | 1-1/4" |
| Latch Backset Dim | 2-3/4" |
| Operating Voltage | 24VDC |
| Cylinder Type | SFIC Prep Less Core |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Package Length | 8.25" |
