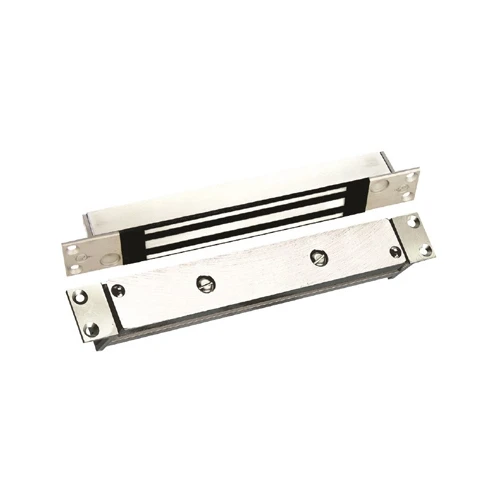

Securitron SAMB SAM 1200lbs Shear Aligning Magnalock, Satin Stainless Steel

SAMB Model – Shear Magnalock – 12/24VDC, BondStat Monitor
SAM: Shear Aligning Magnalock – 1,200 lbs holding force shear aligning Magnalock
Hidden strength at any angle for any application This concealed Magnalock is ideal for traffic control or medium security and with its flexible mounting options solutions the most challenging door control situations. The SAM Shear Aligning Magnalock has mounting options for a single door or each leaf on a pair of doors and can be on a sliding, in-swing, out-swing or swing-through door. It mounts fully concealed into wood, steel, aluminum or Herculite doors in any position: at the header, door edge or threshold.
Product Features

• Efficient low power usuage
• Automatic dual voltage – no field adjustment required
• Fully sealed for weatherproof operations
• Rust resistant—all ferrous metal surfaces plated for durability
• Instant release circuit— no residual magnetism
• Noise suppression with included MOV
• Recessed for aesthetically appealing finish
• 10 ft [3.05m] of jacketed, stranded conductor cable
• Direct mount in door frame for strength and reliability
• MagnaCare lifetime replacement, No Fault Warranty

Dimensions

• Magnalock: 10-7/8″L x 1-3/16″D x 1-1/2″H
• Strike: 10-7/8″L x 1-7/16″D x 1-1/2″H

Certifications

• UL 10C Listed
• CAN4-S104, CAN/ ULC-S533 Listed
• ANSI/UL 294 Listed
• ANSI/BHM 156.23, Grade 2; E08561-1000, E08571-1000, E08581-1000, E08591-1000
• CSFM—California State Fire Marshal approved
• CE:EN 50081-1(92), EN 61000-6-2(99) approved
